VTL 70
The new vertical turning line of Pentamac VTL 70, are ideal for machining heavy parts of medium-large size.
With a mehanite cast iron structure which gives the machine rigidity and stability, the lathe has a hydraulic spindle of 15 inch diameter having a speed of 50-2,000 rpm; the maximum turning diameter reaches 800 mm and the maximum permissible load is 800 kg.
Complete already in its standard version, it also has the possibility of having the motorized tools (“C” axis).

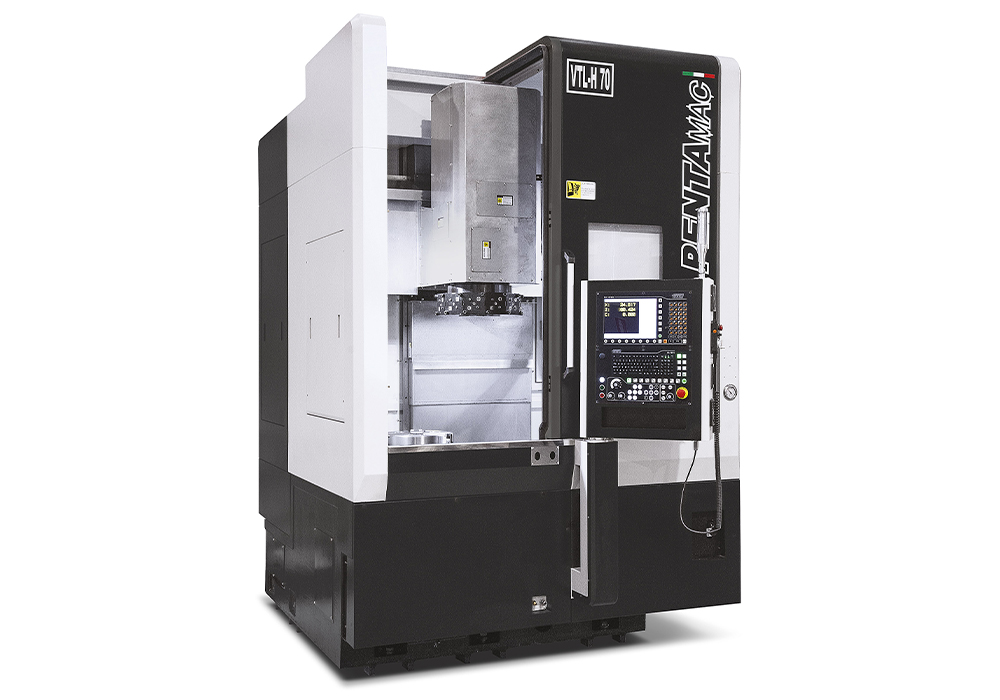

VTL-H 70
The new vertical turning line of Pentamac VTL 70, are ideal for machining heavy parts of medium-large size.
With a mehanite cast iron structure which gives the machine rigidity and stability, the lathe has a hydraulic spindle of 15 inch diameter having a speed of 50-2,000 rpm; the maximum turning diameter reaches 800 mm and the maximum permissible load is 800 kg.
Complete already in its standard version, it also has the possibility of having the motorized tools (“C” axis).
INFO
| FEATURES | MOD. VTL 70 |
| Max diameter on the bed (flange) | 800 mm |
| Max turning diameter | 800 mm |
| Max axis speed | 24 m/min |
| Max turning height | 600 mm |
| Max load allowed | 800 Kg |
| X travel | -40 + 430 mm |
| Z travel | 950 mm |
| Fast forward | 12/24 m/min |
| Spindle taper | ASA 2-11 |
| Spindle diameter | 15 inch |
| Spindle motor power | 18,5 Kw(S1) - 22,3(S3) |
| Spindle speed | 50-2.000 RPM |
| Turret tool holder | 12 posizioni |
| CNC model | VISEL VSC1070T |
| Coolant tank capacity | 350 Litri |
| Total power absorbed | 34 Kw |
| Net weight | 10.000 Kg |
| Dimensions | 3.250 mm x 1.900 mm |
| Height | 3.395 mm |
• Model “H” with SAUTER BMT75 motorized tool turret
• Tool presetting RENISHAW
• Smoke extraction unit
• Coolant through tool 20 bar
• Extendible electronic hand wheel mod EKV
• Kit INDUSTRY 4.0
USER FRIENDLY CNC maximum simplicity with high performance. From the raw piece to the final product in two simple steps.
Versatile, simple and practical, VISEL CNCs have been designed using criteria of extreme simplicity of use with a practical and intuitive “USER FRIENDLY” operator interface. Extremely complete, they can be programmed at various levels: in standard ISO (G code), for the compilation of pre-defined cycles (MACRO), through direct creation, drawing a profile directly on the machine or importing it from a CAD file in .DXF format with consequent processing.
USER FRIENDLY CNC maximum simplicity with high performance. From the raw piece to the final product in two simple steps.
Versatile, simple and practical, VISEL CNCs have been designed using criteria of extreme simplicity of use with a practical and intuitive “USER FRIENDLY” operator interface. Extremely complete, they can be programmed at various levels: in standard ISO (G code), for the compilation of pre-defined cycles (MACRO), through direct creation, drawing a profile directly on the machine or importing it from a CAD file in .DXF format with consequent processing.
