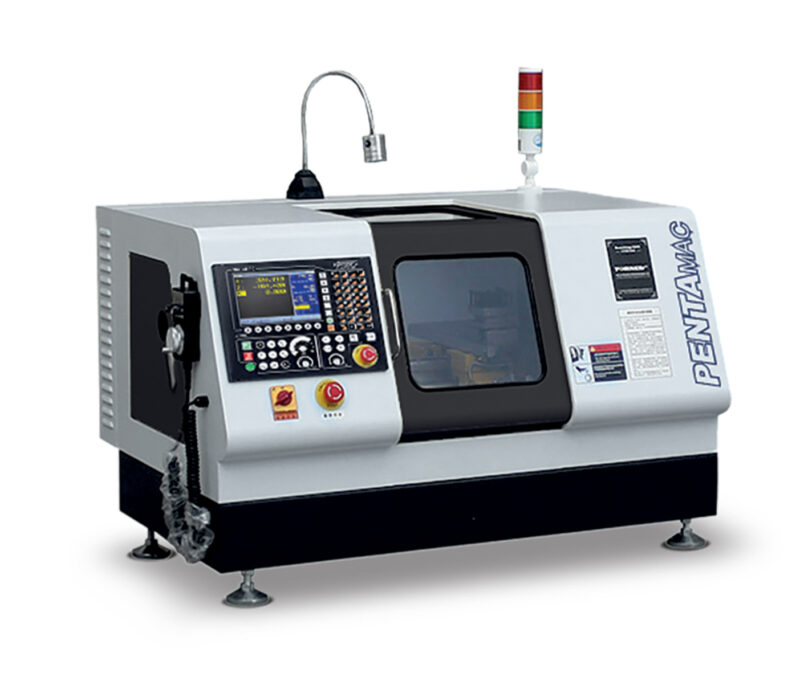

µTURN
The new micro-lathe from Pentamac is a high-performance, two-axis lathe; its cast iron structure makes it, despite its small size, an ideal machine for industrial sites and craft-professional workshops.
The machine in its standard version is complete with a turning diameter of 210 mm and a spindle bore of 26 mm; it mounts a vertical turret with 4 positions and a suitable tailstock.
µTURN
The new micro-lathe from Pentamac is a high-performance, two-axis lathe; its cast iron structure makes it, despite its small size, an ideal machine for industrial sites and craft-professional workshops.
The machine in its standard version is complete with a turning diameter of 210 mm and a spindle bore of 26 mm; it mounts a vertical turret with 4 positions and a suitable tailstock.
INFO
| FEATURES | µTURN |
| Center height | 105 mm |
| Max turning diameter on the carriage | 110 mm |
| Max turning diameter on the bed (swing) | 200 mm |
| X - Z travel | X: 100 mm Z: 300 mm |
| Spindle taper | MT4 |
| Max speed (standard) | 3.000 rpm |
| Spindel diameter | 100 mm |
| Spindle bore | 21 mm |
| Power spindle motor | 1.100 W |
| Tailstock taper | MT2 |
| Quill diameter | 20 mm |
| Quill travel | 25 mm |
| Electric turret | Vertical turret 4 positions |
| CNC standard | VISEL VSC 1021T |
| Net weight | 350 Kg |
| Total power supply | 220 Vac |
| Dimensions | 1.200 x 600 mm x (h) 550 mm |
Aumento velocità mandrino 36.000 RMP
Cambio utensile + 10 utensili (tott. 32 utensili)
Presetting utensile Z + D (radio)
Compressore silenziato (20 L) 230 Vac , mono fase
KIT Interfaccia ROBOT (In-out digitali)
KIT INDUSTRIA 4.0
Allestimento macchina per lavorazione graffite o materiali polverosi
USER FRIENDLY CNC maximum simplicity with high performance.
The CNC VISEL VISPLUS 210, touch screen 18 inch, is a numerical control system with 5 axes in continuous, which can be interfaced with every type of CAM. The CNC is highly performing with dynamic and static RTCP control, a large keyboard includes all manual axes and other controls to facilitate the use for the operator. A micro-camera is present on the 𝞵ERA machining centers to monitor the machining from inside the machine by displaying them on the CNC screen.
USER FRIENDLY CNC maximum simplicity with high performance.
The CNC VISEL VISPLUS 210, touch screen 18 inch, is a numerical control system with 5 axes in continuous, which can be interfaced with every type of CAM. The CNC is highly performing with dynamic and static RTCP control, a large keyboard includes all manual axes and other controls to facilitate the use for the operator. A micro-camera is present on the 𝞵ERA machining centers to monitor the machining from inside the machine by displaying them on the CNC screen.
